Ortar Couplings

REX:

1.Materia: baja

2.Thread: BSP;

3.Gastiket: NBR / EPDM;

4.Casting Techhique: Casting Precision / lali

Kapten mortir (pn 50 bar)

✱ Mung ukuran jinis ukuran lan sistem sing padha!

✱ Zinc-Plated Lan Kuning / Biru, Passipat (Gratis saka Chrome VI)

✱ kanggo piranti semprotan mortir lan konkrit

Jenis jinis swiving liyane sing dijaluk!

Bagian swiving, timbal ing slide Teflon, sing kuat lan ketat

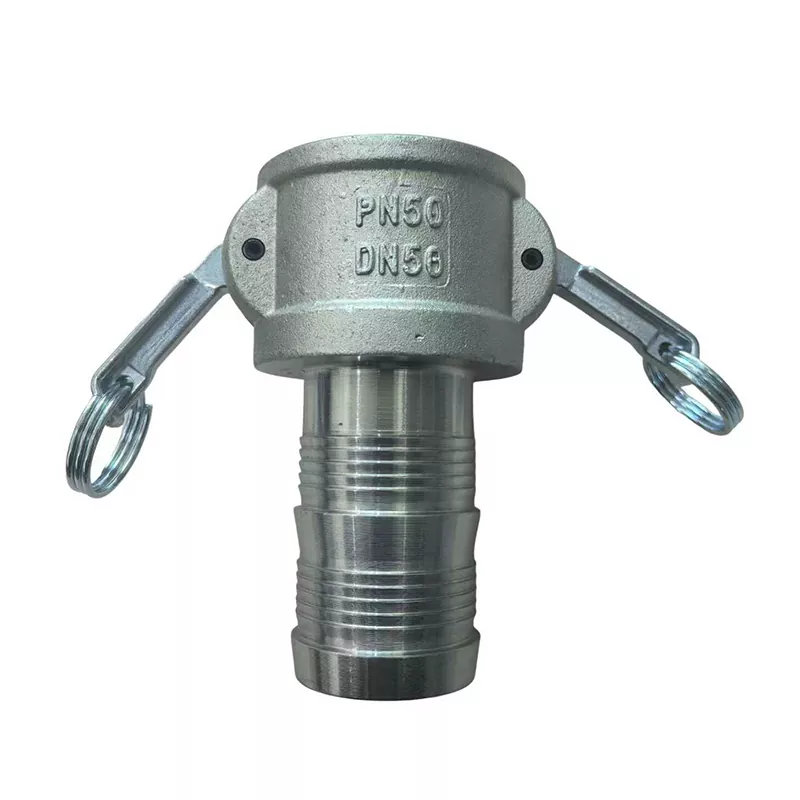

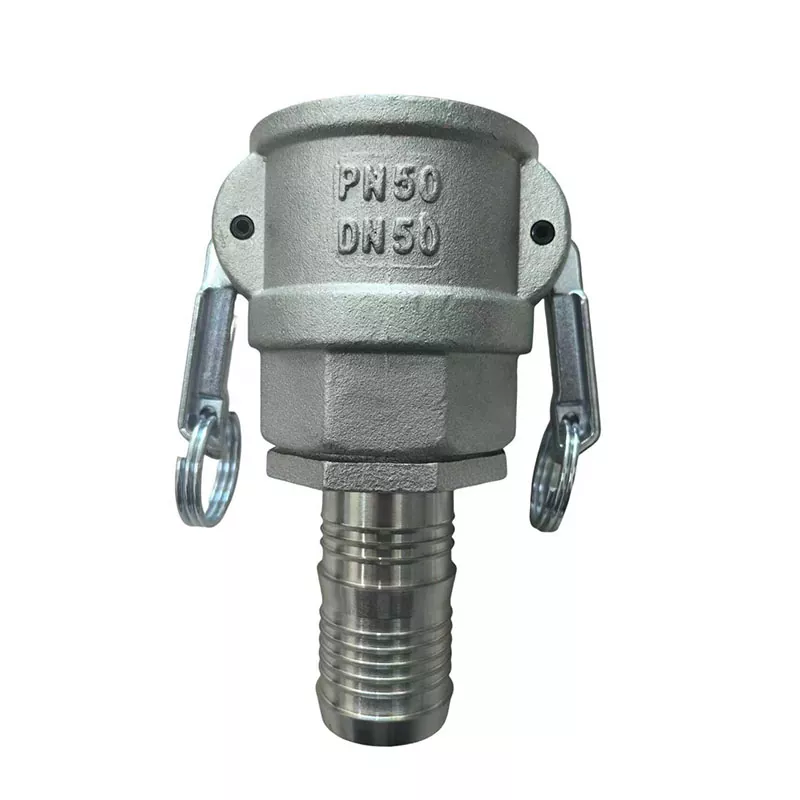

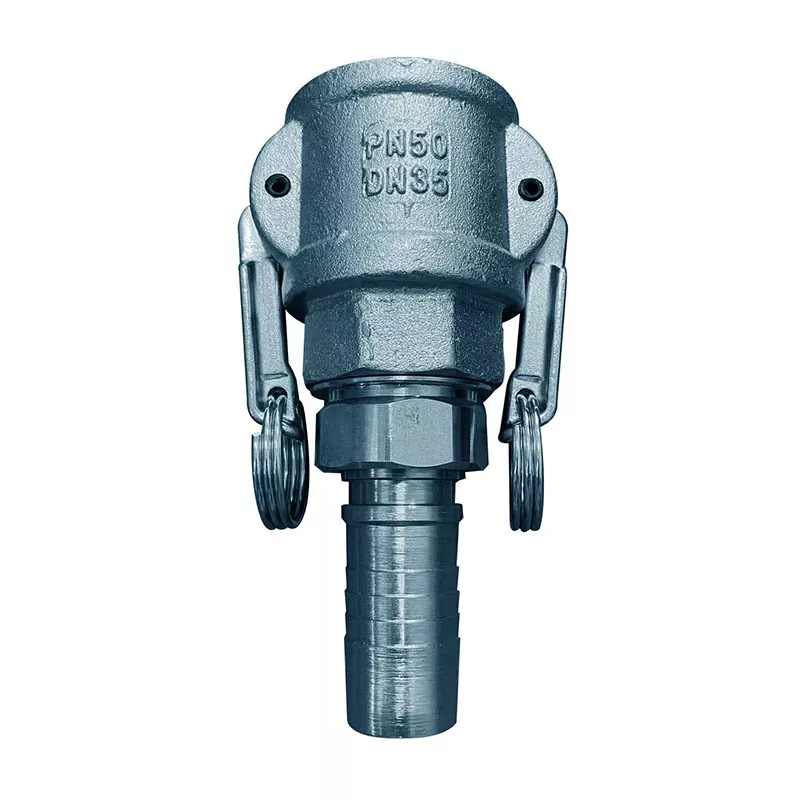

 Kopling nganggo batang selang (wacana lengkap)

				Ukuran	DN	Bagean #	Id	L	L1	A	B	Bobot (kg)
				1 "	25	Mcc2-100-sp	41.8	120.5	67	28.9	69	0.6
				1-1 / 4 "	35	MCC2-125-SP	51.1	126	70.5	37.9	77	0.74
				2 "	50	MCC2-200-SP	64.2	141	85.5	54	90	1.2

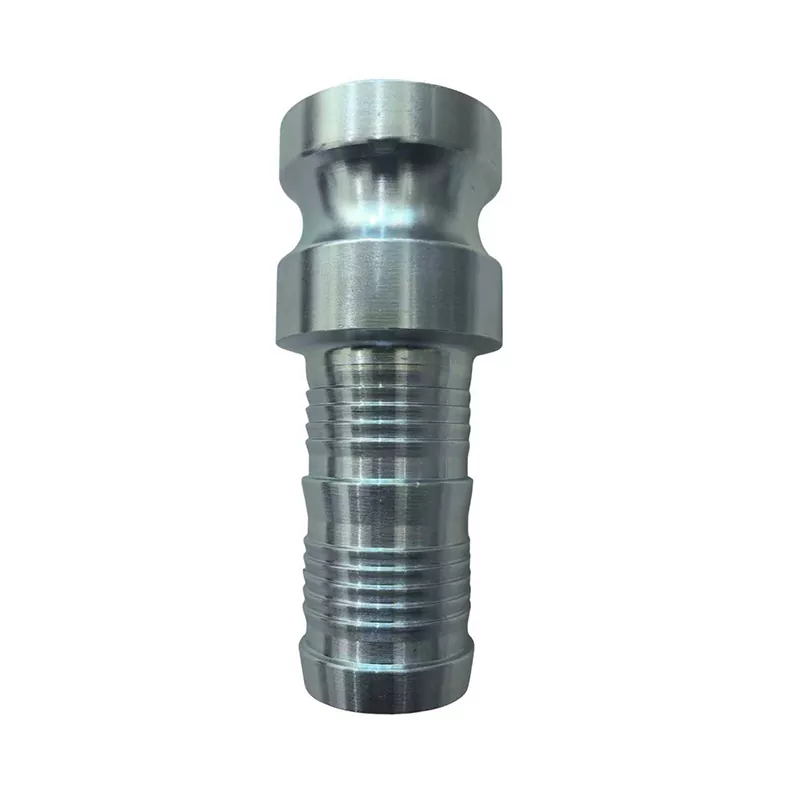

Plugs karo batang selang (wacana lengkap)

				Ukuran	DN	Bagean #	Saka	L	L1	A		Bobot (kg)
				1 "	25	Mce2-100-SP	40.7	119.3	65.8	28.9		0.392
				1-1 / 4 "	35	Mce2-125-SP	49.7	121.2	72.6	37.9		0.538
				2 "	50	Mce2-200-SP	62.9	136.4	74.9	54		0.97

Plugs nganggo batang selang (suda wacana)

				Ukuran		DN	Bagean #		Saka	L	L1	Bobot (kg)
				1 "x3 / 4"		25x20	Mce2-1007-SP		40.7	119.3	65.8	0.47
				1-1 / 4 "x1"		35x25	Mce2-1210-sp		49.7	121.2	65.8	0.57
				2 "x1-1 / 4"		50x35	Mce2-2012-sp		62.9	121.2	72.5	0.81

REX:

1.Materia: baja

2.Thread: BSP;

3.Gastiket: NBR / EPDM;

4.Casting Techhique: Casting Precision / lali

✱ Mung ukuran jinis ukuran lan sistem sing padha!

✱ Zinc-Plated Lan Kuning / Biru, Passipat (Gratis saka Chrome VI)

✱ kanggo piranti semprotan mortir lan konkrit

Jenis jinis swiving liyane sing dijaluk!

Bagian swiving, timbal ing slide Teflon, sing kuat lan ketat

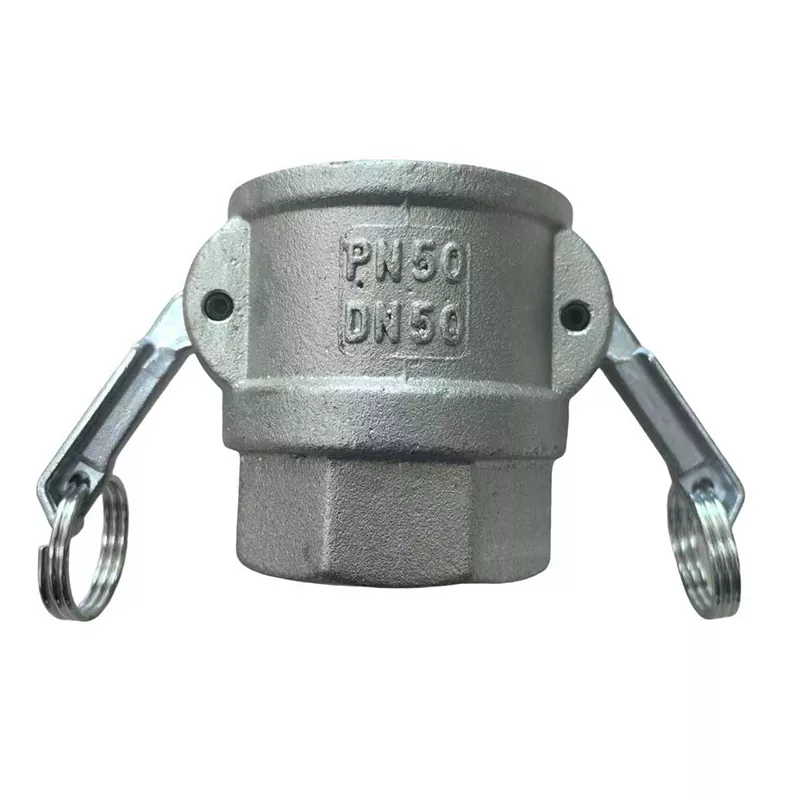

Kopling nganggo Utas Wanita

				Ukuran	DN	Bagean #	Id	L	L1	B	SW	Bobot (kg)
				1 "	25	MCD-100-SP	41.8	74	21	69	41	0.614
				1-1 / 4 "	35	MCD-125-SP	51.1	74	21	77	50	0.7
				2 "	50	MCD-200-SP	64.2	82	25.5	90	68	1.09

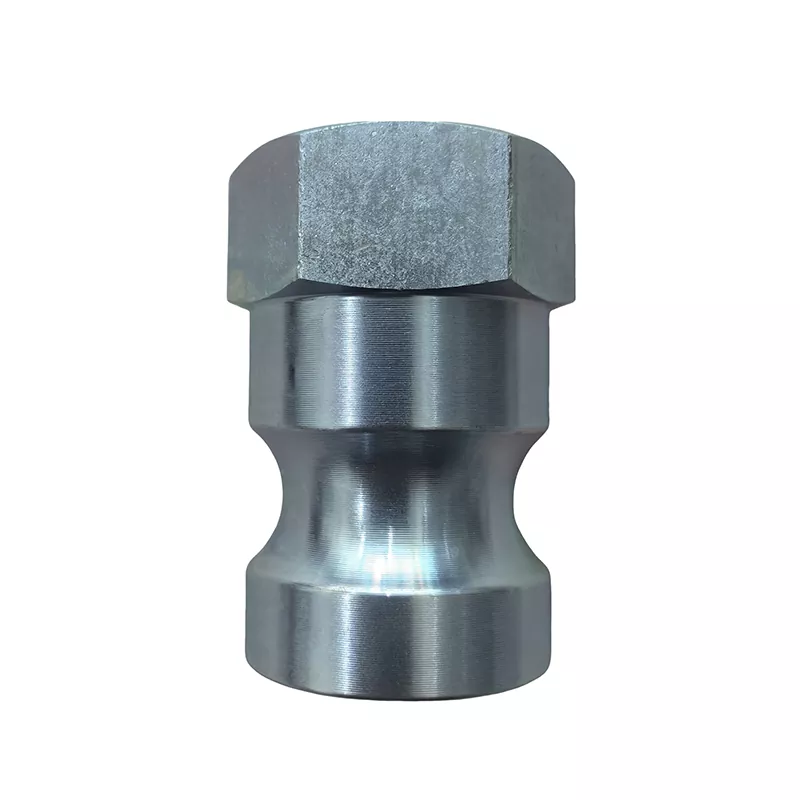

Plugs nganggo benang wanita

				Ukuran	DN	Bagean #	Saka	L	L1		SW	Bobot (kg)
				1 "	25	Mca-100-SP	40.7	67	47		42	0.345
				1-1 / 4 "	35	Mca-125-sp	49.7	68	47.8		55	0.48
				2 "	50	Mca-200-sp	62.9	71	48.8		70	0.65
